Solid State Sonics & Electronics, Inc.

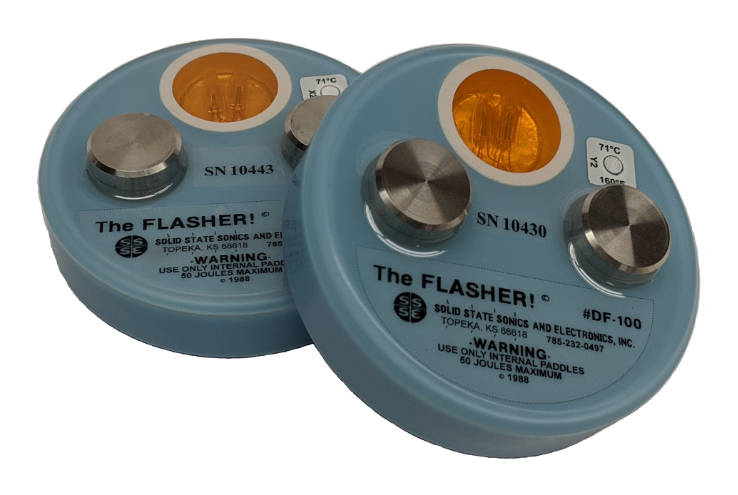

The FLASHER! DF-100
Sterilizable Defibrillator Tester for the Operating Room


The Flasher is an internal defibrillator tester that is totally sealed, can be sterilized, and is suitable for use during open heart procedures. The Flasher can test an internal defibrillator before, during, and after surgery.
DF-100 The Flasher!
The Flasher requires no adjustment, can be sterilized using ETO gas, STERRAD*, or STERIS* systems and kept in the O.R. or Cath. Lab until internal defibrillation may be needed, then remove from the sterile package and you're ready to test.

Any defibrillator can be tested by placing the paddles or spoons onto the two stainless electrodes then discharging the defibrillator.  The spot will flash, showing the defibrillator functioned properly.


Features

Sterilizable
Using ETO gas, STERRAD*, or STERIS* systems

Reusable
Clean the unit and sterilize, it's ready to use again

Simple
No calibration steps or adjustments required, just open the sterile package and use

Standard
A 50 ohm industry standard load is presented to the defibrillator. The Flasher will test internal defibrillator energy from 5 to 50 Joules

Display
Function is indicated by a sealed internal neon lamp flashing upon defibrillator discharge

Specifications
3.6" diameter by 1.2" high (92mm x 31mm)
Indicates 5 to 50 Joules
Made of a sterilizable epoxy resin, stainless steel contacts, neon lamp sealed inside, internal 50 ohm load
Epoxy resin is now used rather than a polymer resin plastic making it much more resilient to dropping and handling


DF-100 Operating, Cleaning, And Sterilizing Instructions

STERRAD*

Standard Express  Duo  Flex
100NX - YES YES -
100S YES - - -
NX Not Compatible

STERIS*

Standard Lumen Non Lumen Flexible Fast Non Lumen Fast
V-PRO 1 YES - - - - -
V-PRO 1 Plus - YES YES - - -
V-PRO maX - YES YES YES - -
V-PRO maX 2 - YES YES YES YES -
V-PRO 60 - YES YES YES - -
V-PRO s2 - YES YES YES - YES


For questions and orders, please contact us at

Phone : 785.232.0497
Fax : 785.232.0498



*STERRAD and STERIS and their system names are , , TM their respective owners
